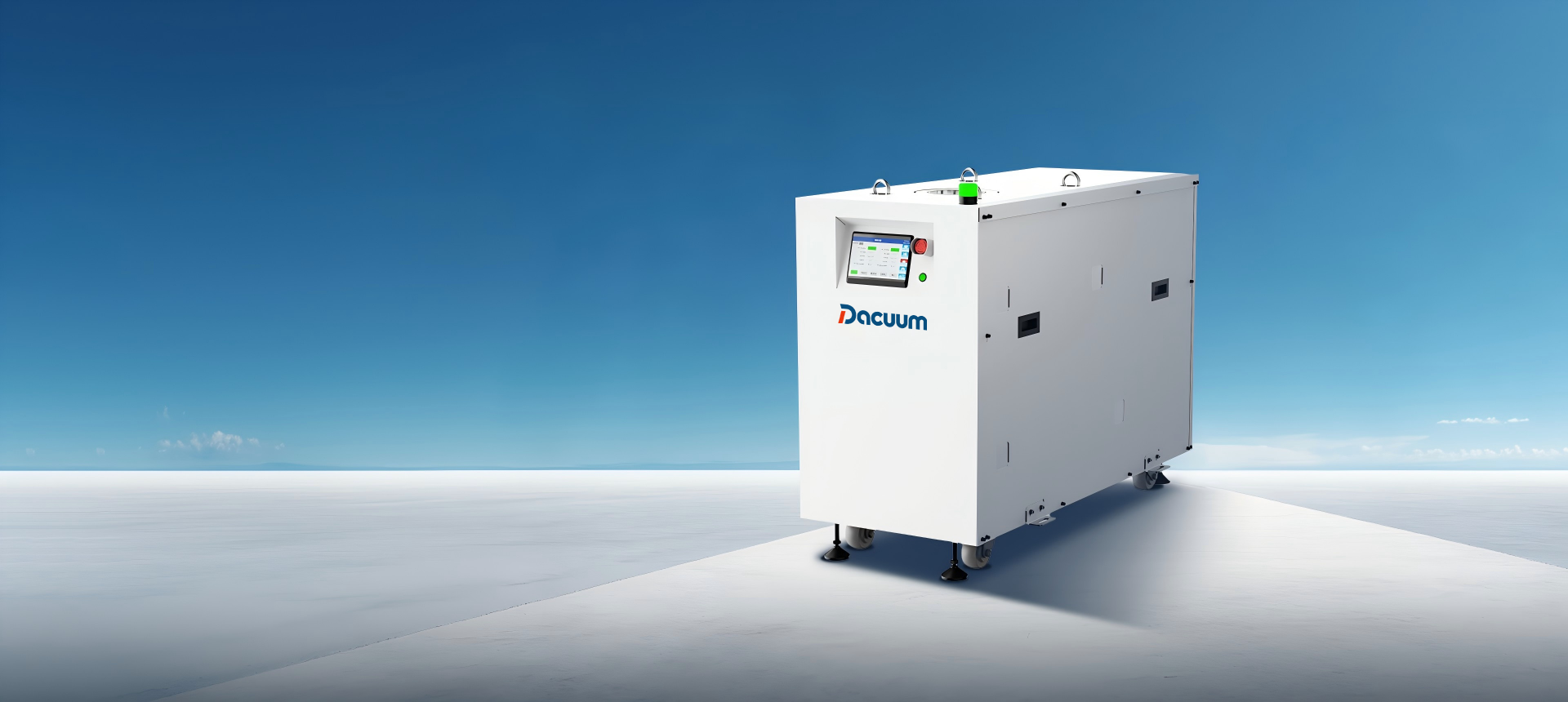

DPH Vacuum Unit

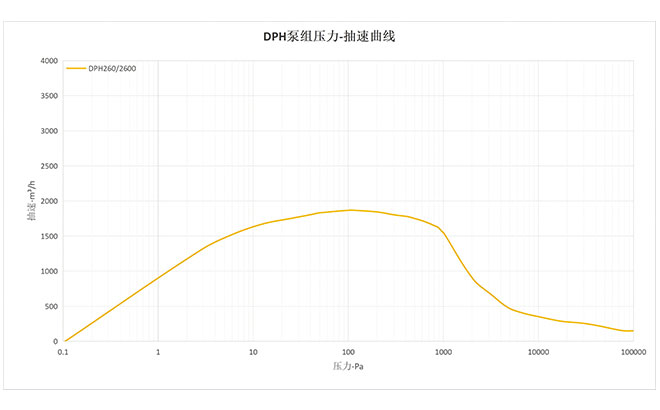

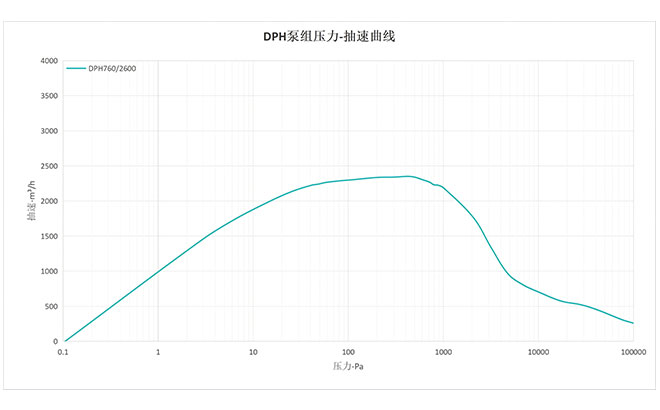

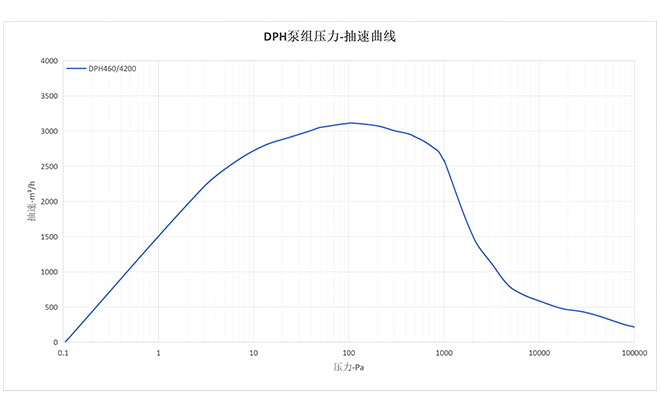

Introduction Core Components Product Features Parameters & Pumping Speed Curve Diagram Product Structure Diagram Application Scenarios

Introduction

The core components of the DPH vacuum unit are screw pumps and Roots pumps, representing a model of efficient integration in modern industrial vacuum technology. By intelligently combining a dry screw vacuum pump as the backing pump with a Roots vacuum pump, it fully leverages the advantages of both, delivering high pumping speed, high energy efficiency and clean vacuum performance over a wider pressure range.
The complete unit features core strengths including oil-free cleanliness, low noise, energy saving, stability and durability. It is widely used in high-end manufacturing sectors such as lithium battery new energy, semiconductor manufacturing, photovoltaic industry and precision processing, providing one-stop, efficient and reliable vacuum solutions for large-capacity, high-precision vacuum processes.

Core Components

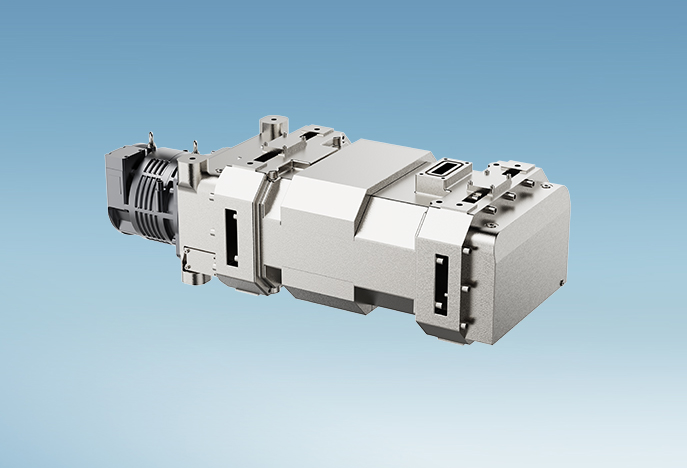

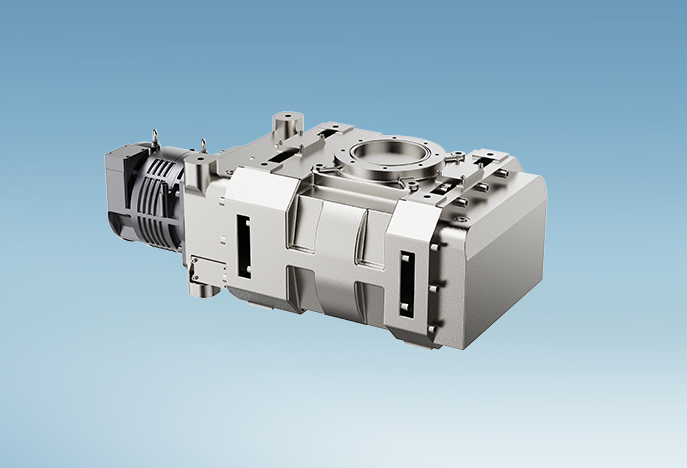

DPH Screw Pump

Roots pump

Product Features

Wide pumping speed range

The pumping speed ranges from 1000 m³/h to 7000 m³/h. The Roots pump and screw pump work in a scientifically coordinated manner: the screw pump quickly completes rough pumping and pressure establishment, while the Roots pump accurately boosts pressure and improves efficiency, achieving dual breakthroughs in pumping speed and vacuum degree.The ultimate vacuum can reach below 0.1 Pa, easily adapting to the vacuum requirements of different chambers and production lines with varying capacities, and greatly shortening the process cycle.

Intelligent interaction hub, control at your fingertips

Equipped with a high-resolution touch screen, it creates an intuitive graphical human-machine interface. The operation logic is clear and concise, with key operating parameters visible at a glance. The system supports real-time panoramic monitoring of the vacuum unit status, and immediately triggers multi-stage audible and visual alarms with precise positioning in the event of an abnormality, realizing intelligent management of the whole process from interaction to operation and maintenance.

Multi-mode intelligence, balanced efficiency and performance

One system, multiple efficiencies. Intelligent operation schemes are tailored for different scenarios such as high-efficiency production, green energy conservation, and stable heavy-duty tasks. With simple selection, an optimal balance can be achieved among extreme efficiency, economic cost, and exceptional reliability, empowering flexible and diverse production strategies.

Simplify complexity for easy maintenance

Simplified design of water cooling channels and water cooling control; the quick-connect cooling system and fully standardized interface design enable rapid assembly, disassembly and replacement of the cooling water circuits.

Standardized interface

Multi-protocol compatible expansion for easy communication and control with external equipment: RS232/485, Profibus, EtherCAT and Ethernet are available as options.

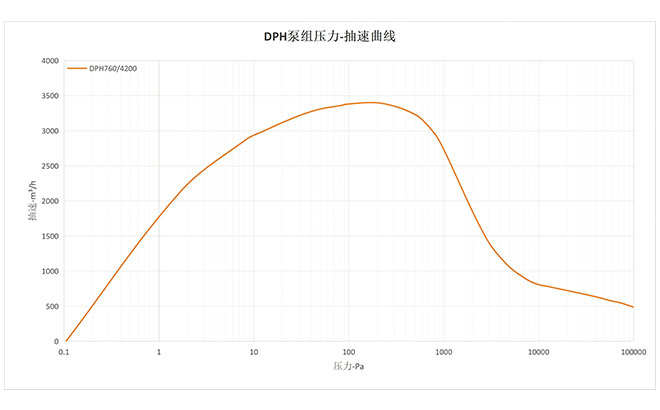

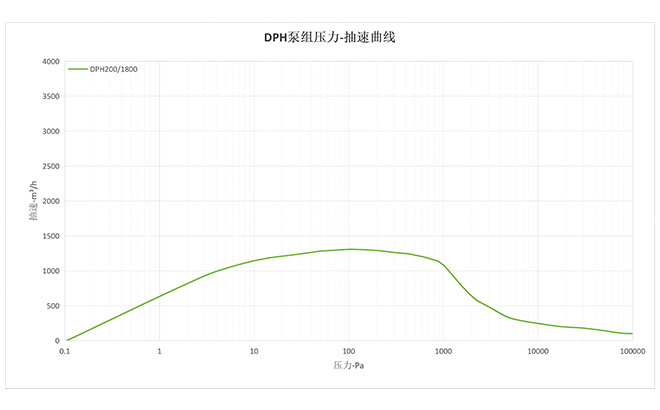

Product Parameters

Specifications

Parameters	Unit
Peak Pumping Speed	Cubic meter per hour, m³/h
Limit Pressure	Pascal / Pa
Motor Power	Kilowatt / kW
Motor Speed	Revolutions per minute / rpm
Power Supply	Volt / V
Suction Port Connection	/
Exhaust Port Connection	/
Cooling Water Parameters	Inlet & Outlet Water Pressure Difference / MPa
Cooling Water Parameters	Water flow, L/min
Cooling Water Parameters	Inlet and Outlet Water Connection / mm
Noise	Decibel, dB
Weight	Kilogram / kg
Overall DimensionsLxWxH	Millimeter / mm

DPH200/1800	DPH260/2600	DPH460/2600	DPH460/4200	DPH760/2600	DPH760/4200
1150	1900	2300	3020	2350	3450
≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
7.5+7.5	7.5+7.5	11+7.5	11+11	22+7.5	22+11
6000	6000	6000	6000	6000	6000
380V，50Hz，3phase	380V，50Hz，3phase	380V，50Hz，3phase	380V，50Hz，3phase	380V，50Hz，3phase	380V，50Hz，3phase
ISO100	ISO160	ISO160	ISO160	ISO160	ISO160
KF50	KF50	KF50	KF50	KF50	KF50
0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
3-5	4-6	4-6	8-10	10-12	10-15
G1/2 external thread	G1/2 external thread	G1/2 external thread	G1/2 external thread	G1/2 external thread	G1/2 external thread
<62	<62	<67	<67	<75	<67
640	660	900	1100	1200	1180
1320x494x890	1320x494x890	1400x570x1100	1405x604x1038	1658x597x1168	1566x605x1075
